Schaerer Soul

Weekly cleaning

Weekly maintenance: This is how you keep your machine in top condition.

This takes about 35 minutes to resolve.

Note: during this cleaning, you will not be able to use the machine for 35 minutes

Items needed

  • Descaler (antikalk)
  • Sink
  • Towel
  • Water/tap
altText

Continue on mobile?

Scan the QR code

1
16

Start cleaning mode

Touch the upper left corner of the touchscreen to activate the gear icon. Press it to open the service / cleaning / maintenance menu.If necessary, touch the [Operator] button to select an operator profile. Enter the PIN code. Then press [Cleaning] and confirm by pressing the green ‘play’ icon.
Image Instruction
Click to view

Clean the dregs tray

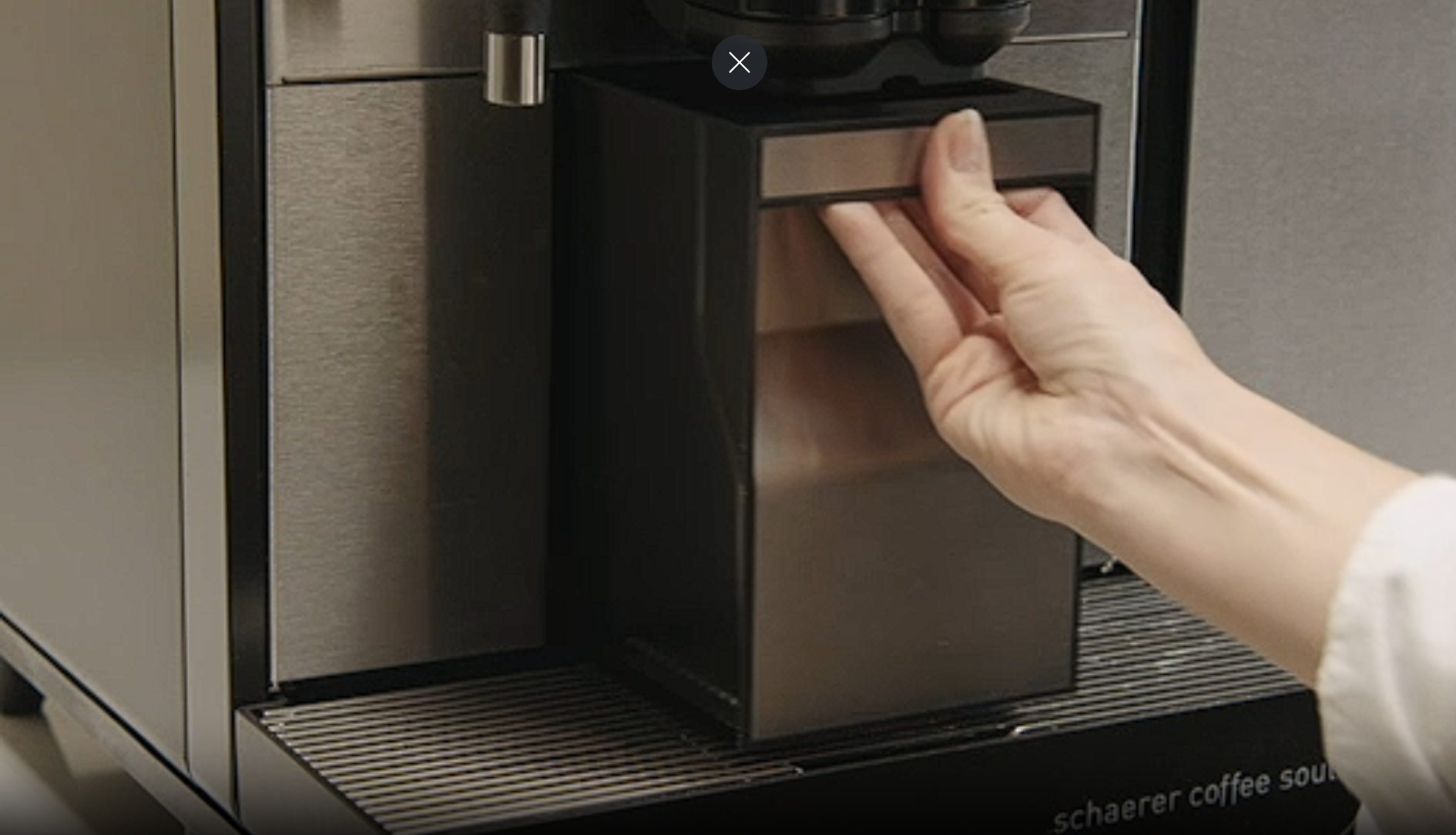

Pull to remove the dregs tray from the machine. Empty the dregs tray and clean it with water, a household cleaning agent, and a brush.Release the brewer unit by pulling the lever at the bottom of the unit and then lowering it as far as possible.Carefully pull it out of the machine while tilting it backward.
Image Instruction
Click to view

Clean the brewer

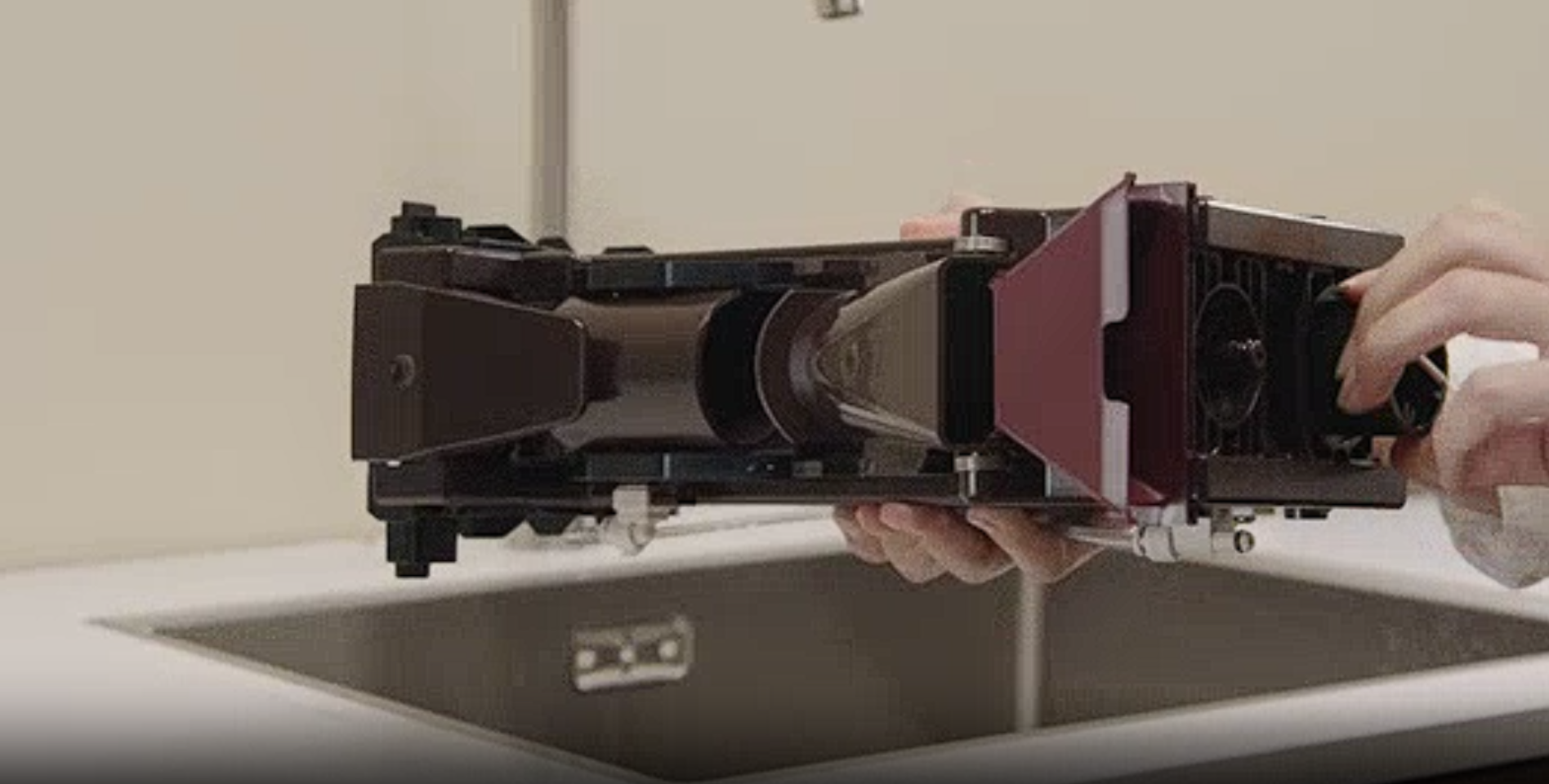

Use the multitool to turn the brewer’s wing nut completely counterclockwise.Clean the brewer under lukewarm running water, using a brush. Lift the slider slightly to reach the filter.
Image Instruction
Click to view

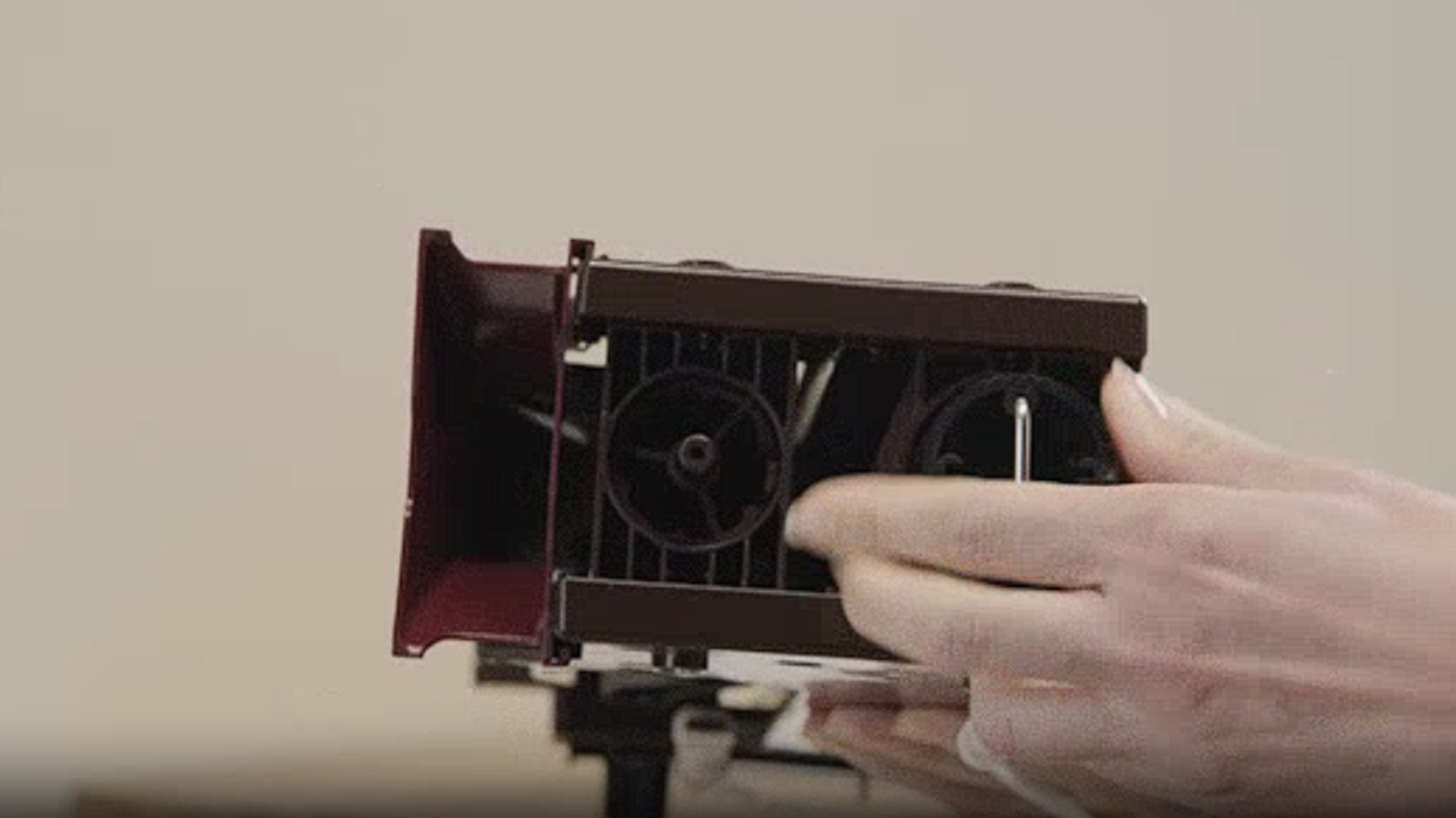

Use the multitool to turn the wing nut clockwise until it reaches the stop, then turn it back ¼ turn counterclockwise from the stop.
Image Instruction
Click to view

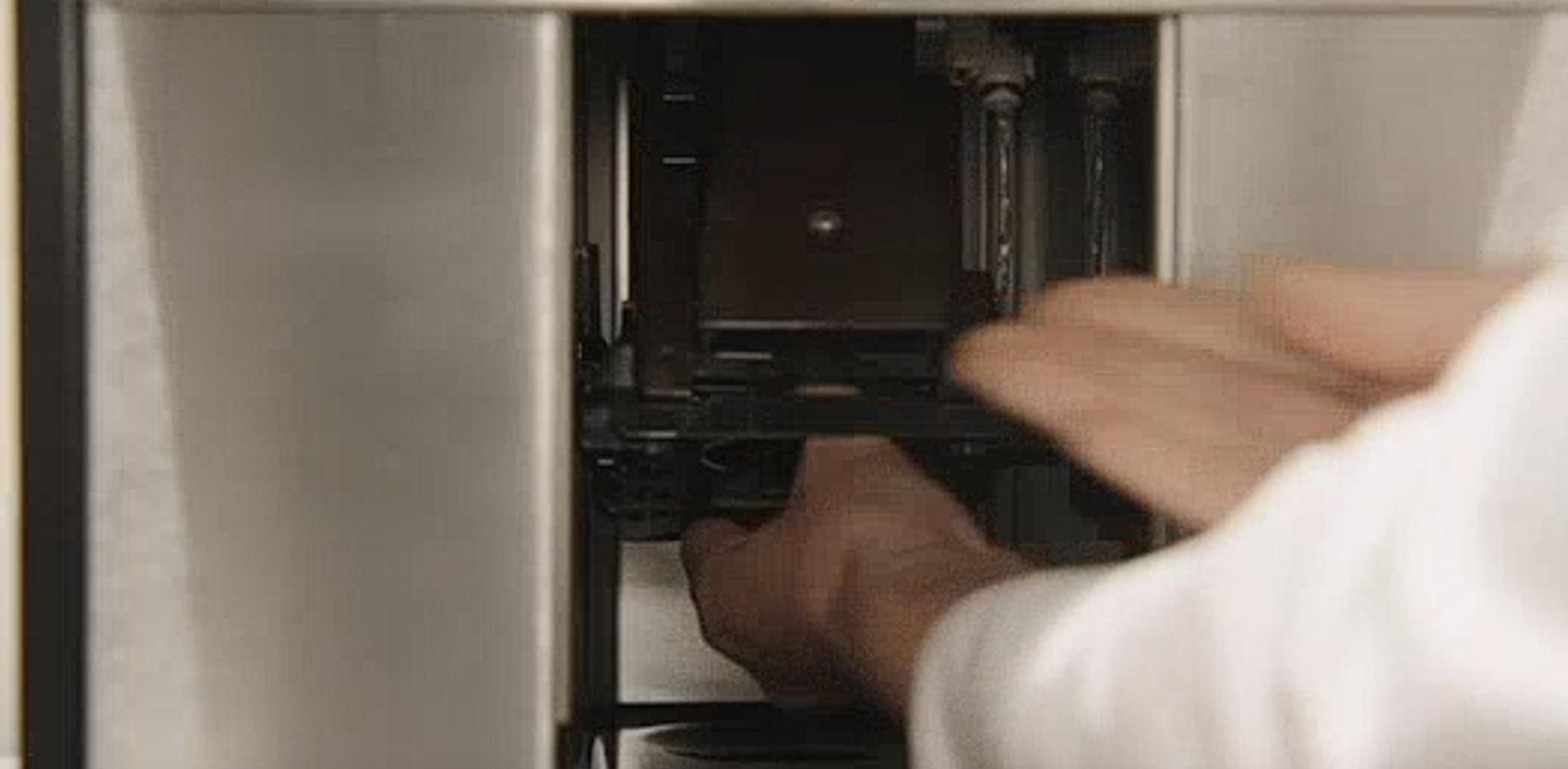

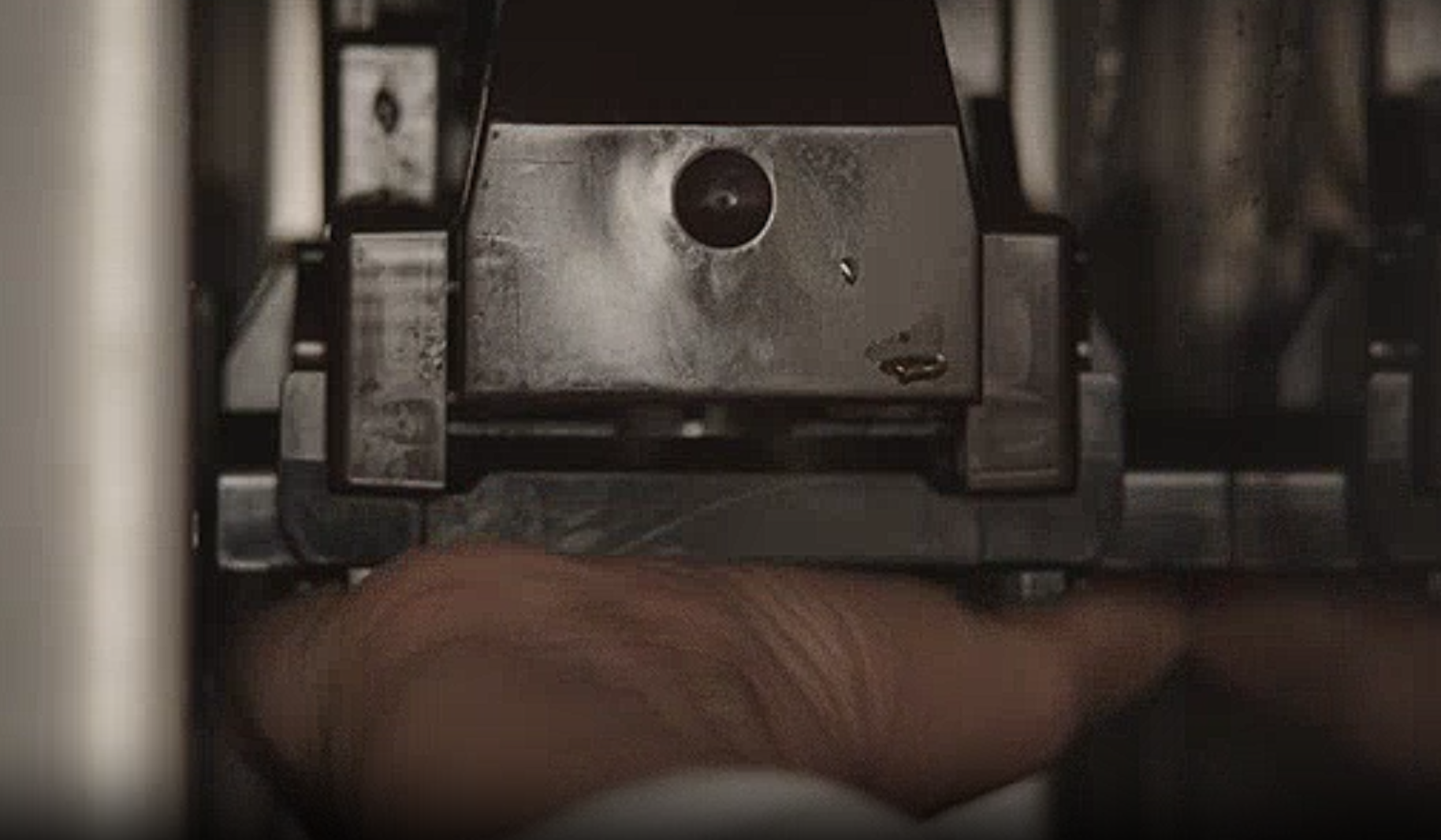

Clean the brewer compartment with a damp cloth.Place the brewer back into the brewer compartment. Lift it to lock it in place.Check that the brewer is properly locked into position.
Image Instruction
Click to view

Cleaning and disassembling the mixing unit

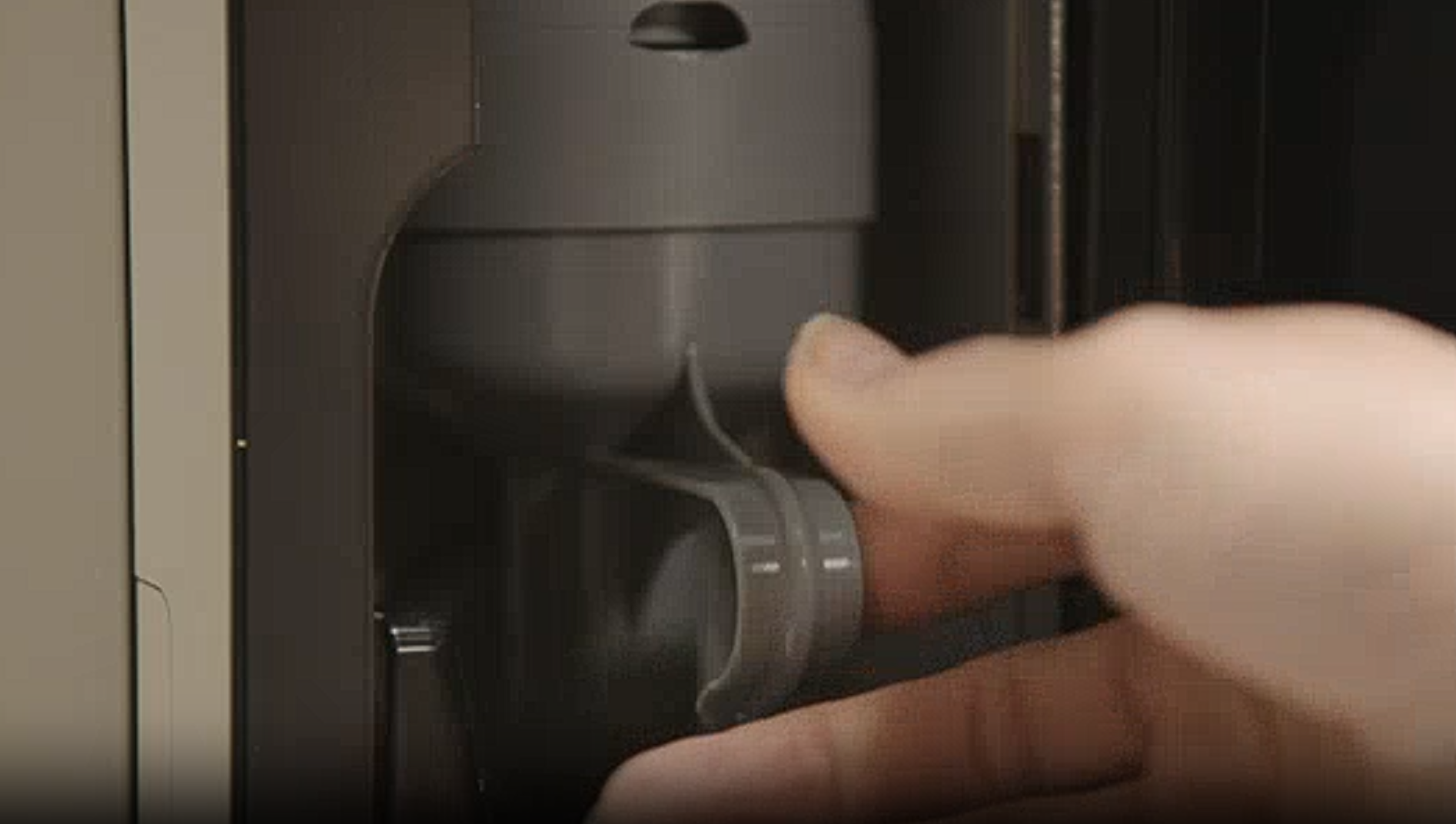

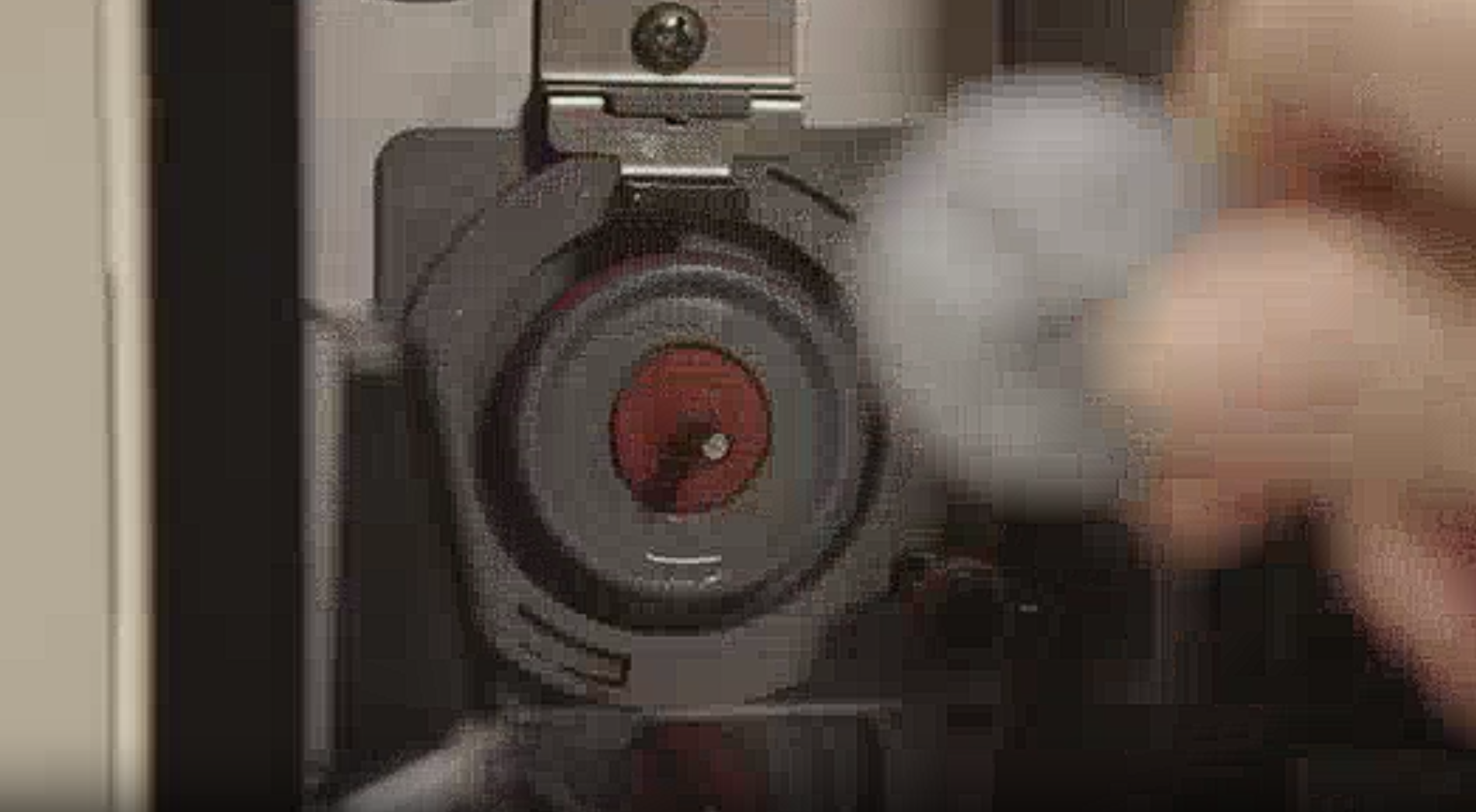

Unlock the touchscreen panel and slide it upward until it locks.Remove the mixer from the machine.Pull the paddle plate to detach it from the drive shaft.Clean the mixing compartment and the mounting/rear plate of the mixing tap with a brush and a damp cloth
Image Instruction
Click to view

Brewer compartment & reinstallation

Clean all parts of the mixing unit, including the mixing fin plate, with clean water and a brush.Rotate the mixing drive shaft until the flattened side is facing upward. Hold the mixing fin plate with the arrow pointing upward and push it onto the drive shaft.Reassemble the mixing unit and place it back onto its holder in ...
Image Instruction
Click to view

Cleaning and Reinstalling the Outlet Cover

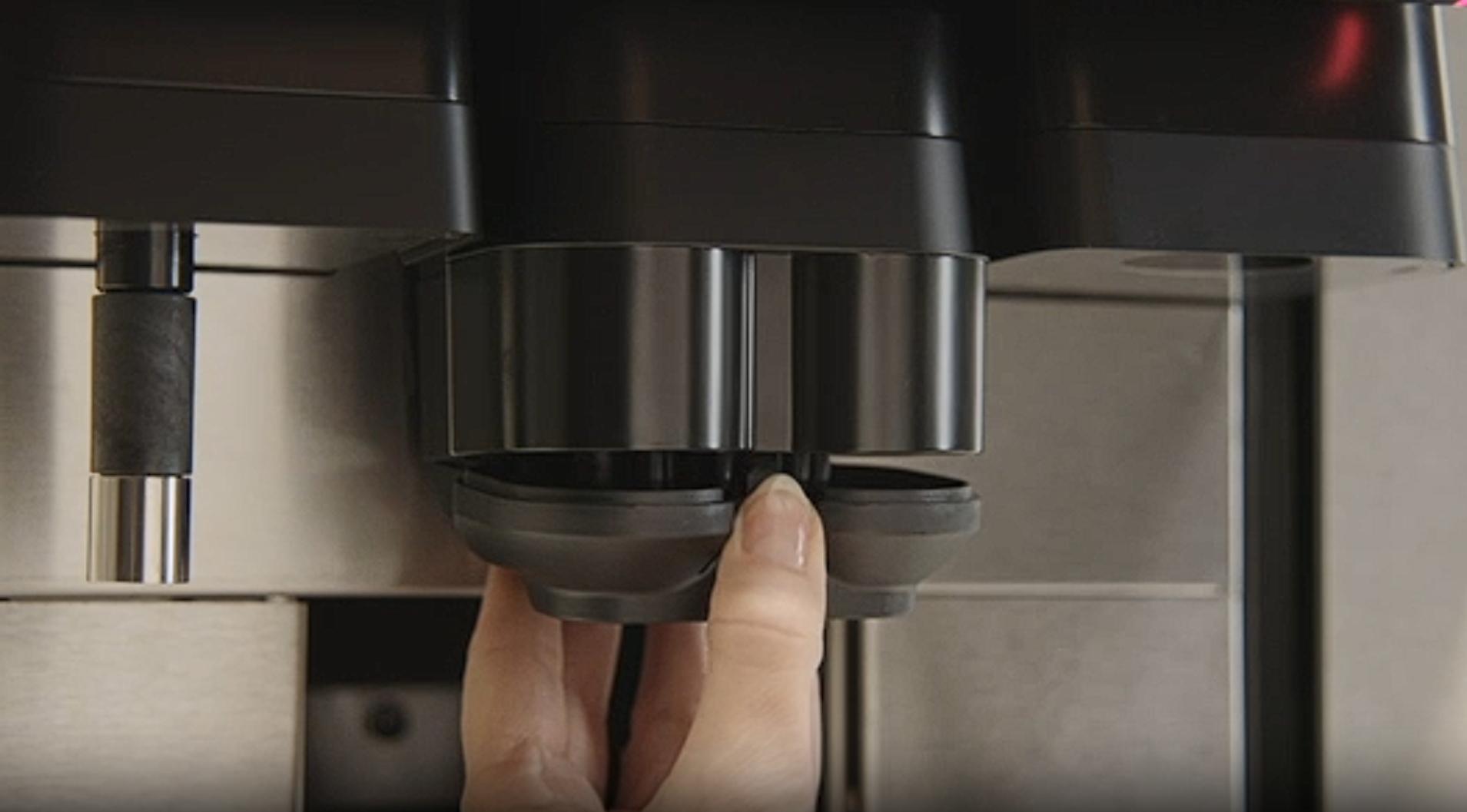

Lift the touchscreen panel to unlock it, then lower it and slide it down until it locks.Press the ribbed button on the outlet cover and push it downward to release it.Clean the dispensing openings with a brush.Place the dregs tray back into the machine.
Image Instruction
Click to view

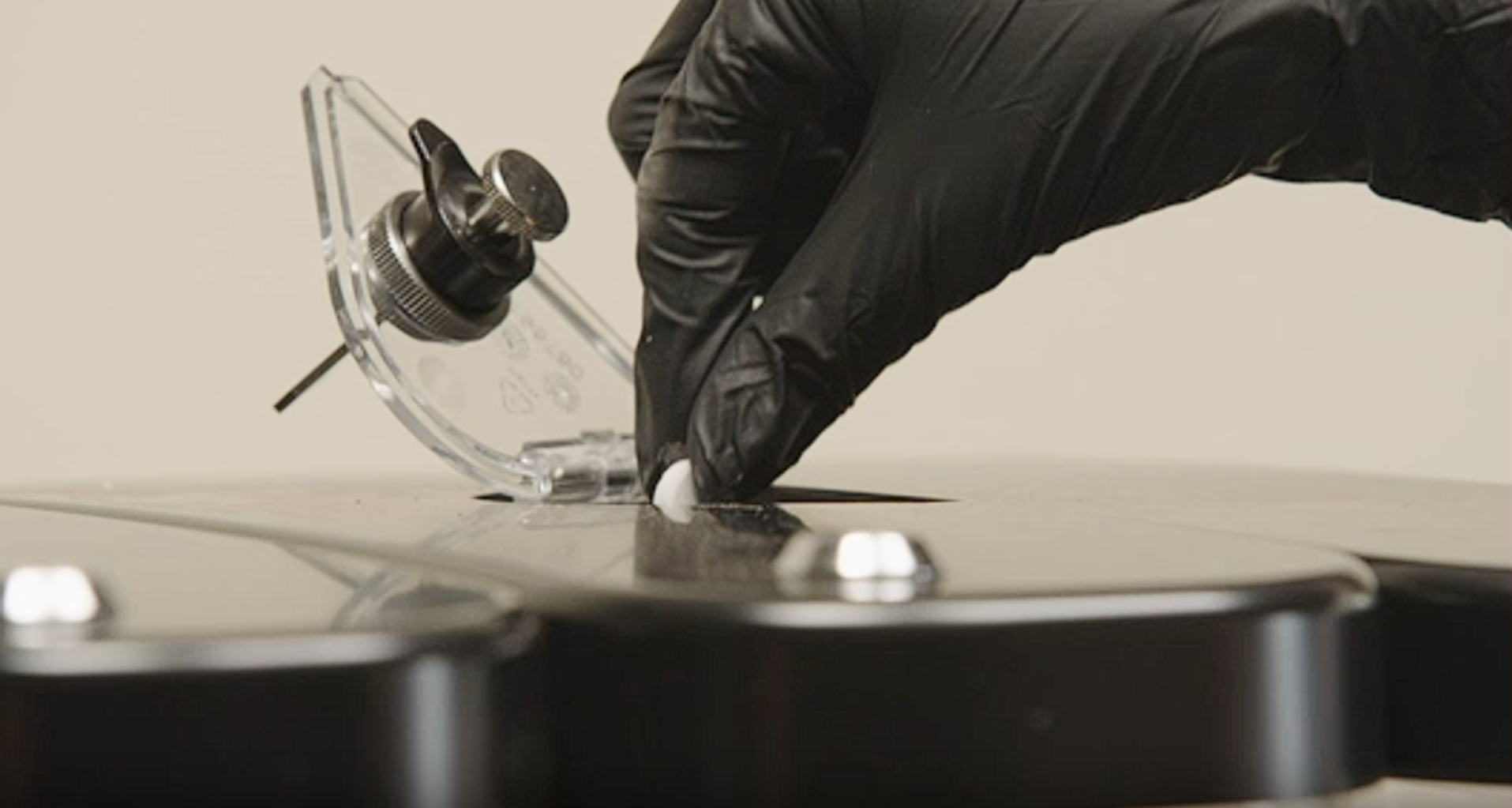

Insert a coffee system cleaning tablet into the slot above the middle coffee bean container.Open the refrigerator and remove the milk container or milk cartons.
Image Instruction
Click to view

Milk Circuit Cleaning: Preparation and Start

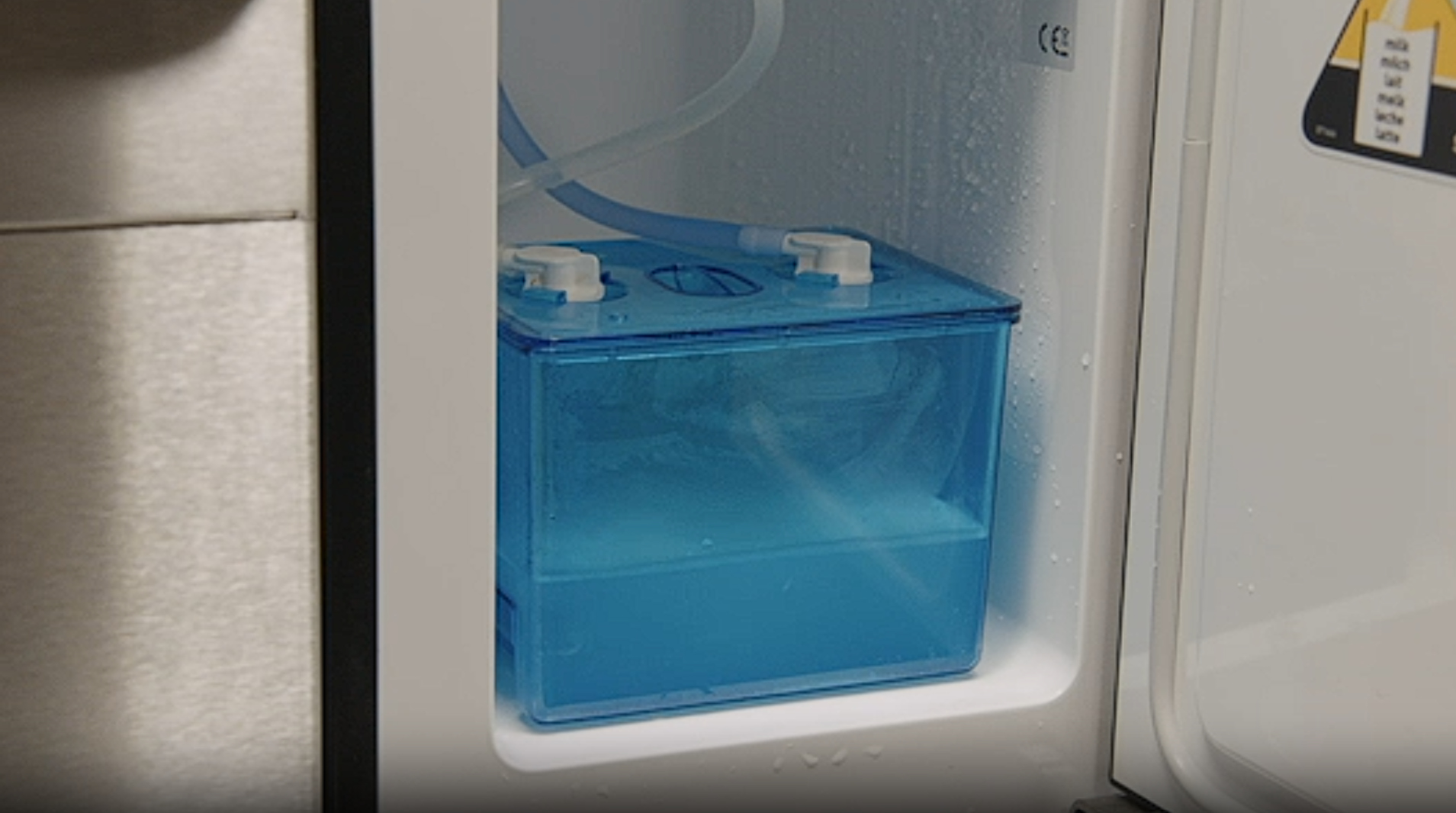

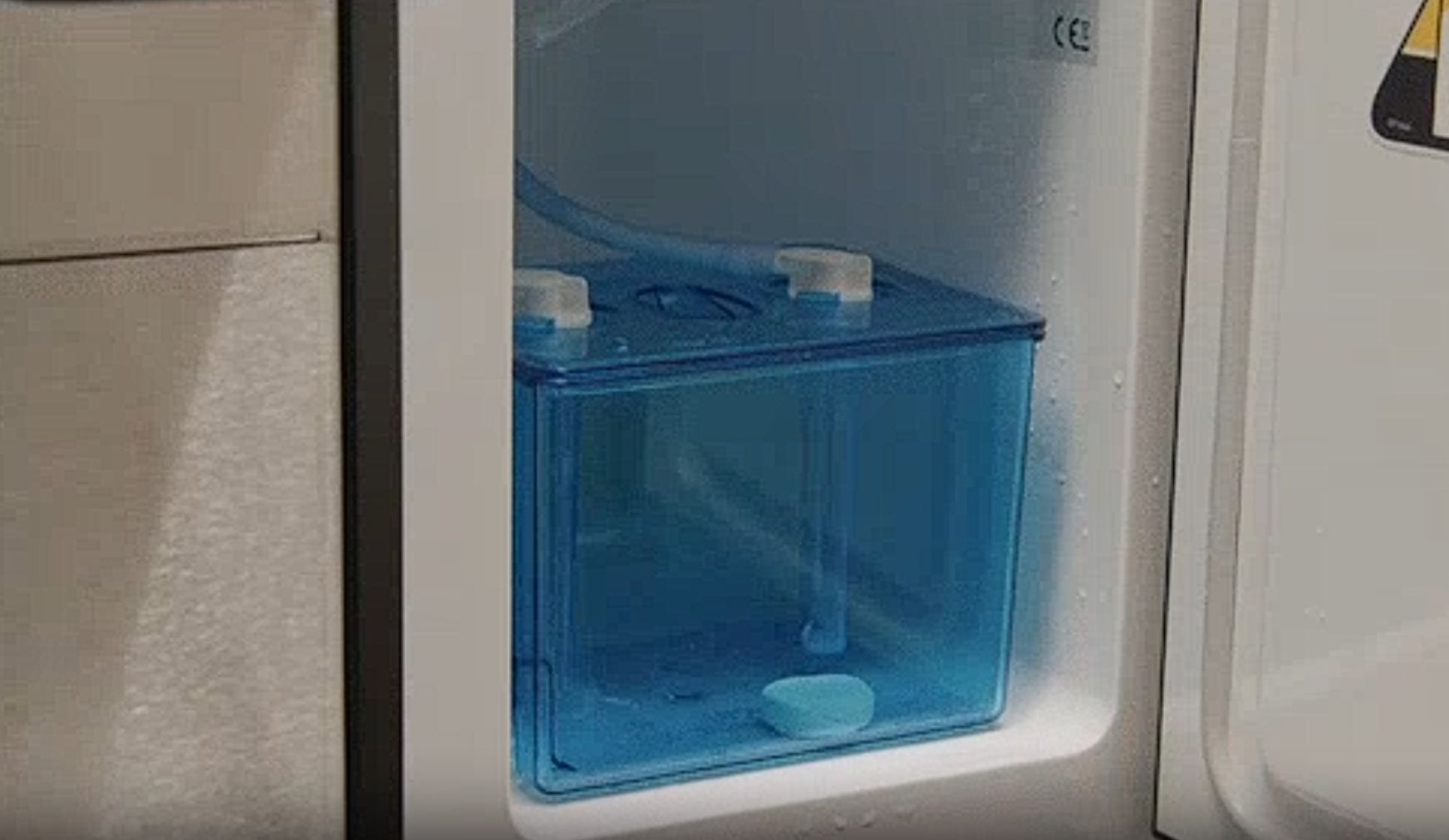

Place an appropriate ‘milkpure’ milk‑circuit cleaning tablet in the cleaning tray and close the lid.Put the cleaning tray in the refrigerator and attach the milk tube to the lid. Keep the refrigerator door open!Confirm on the touchscreen that the cleaning tray has been placed and the cleaning tablet has been added by touch...
Image Instruction
Click to view

WARNING!

Hot water is flowing through the machine and through the pipes
Image Instruction
Click to view

Refilling Ingredients and Cleaning Milk Components

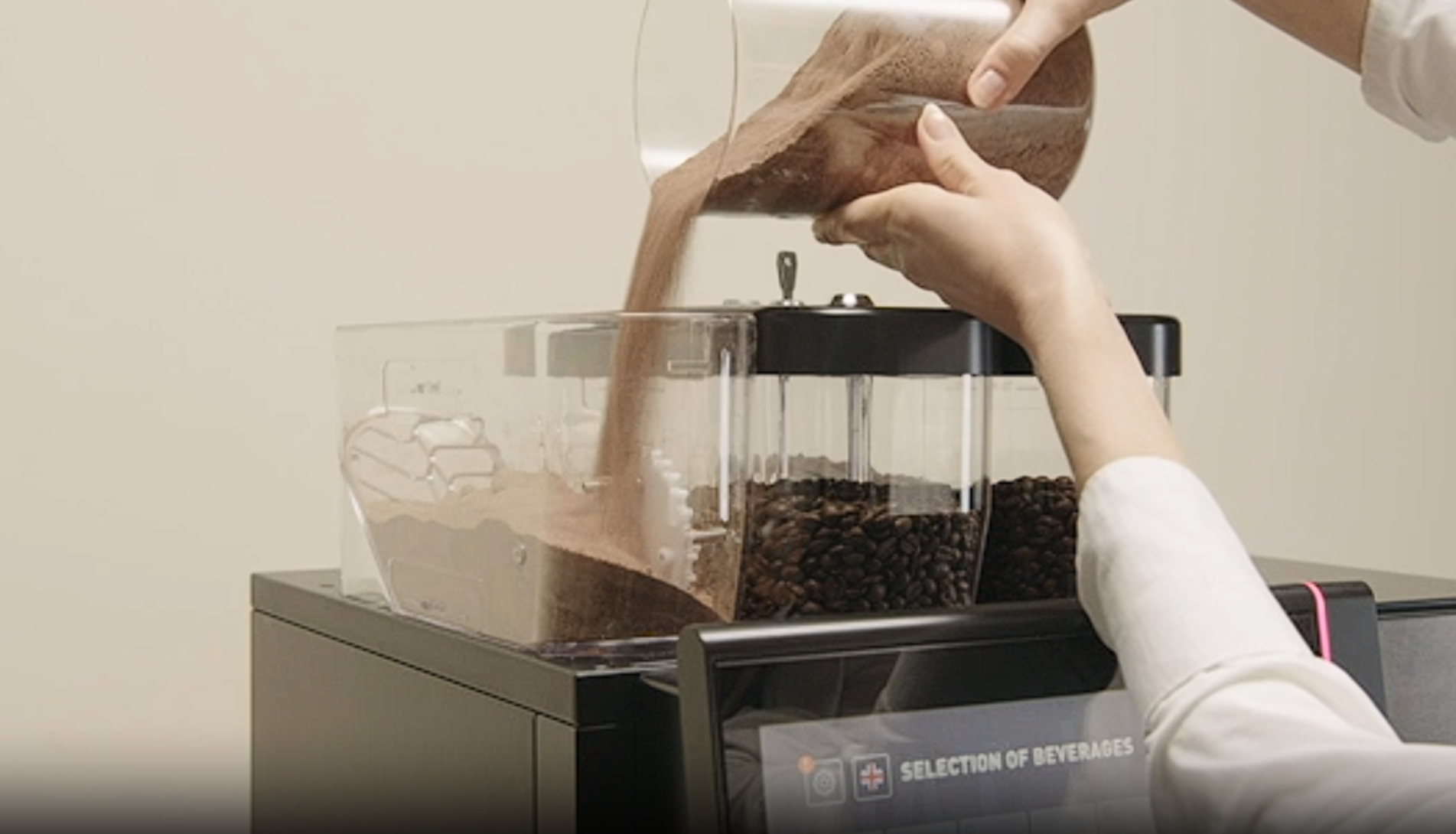

Refill the ingredient containers. Make sure not to overfill them beyond the maximum level.Clean the beverage outlet lid with a brush under running water.Wear cleaning gloves. Clean the milk container and the milk tube with water and dish soap.
Image Instruction
Click to view

Finalizing the cleaning of the milk circuit and the refrigerator

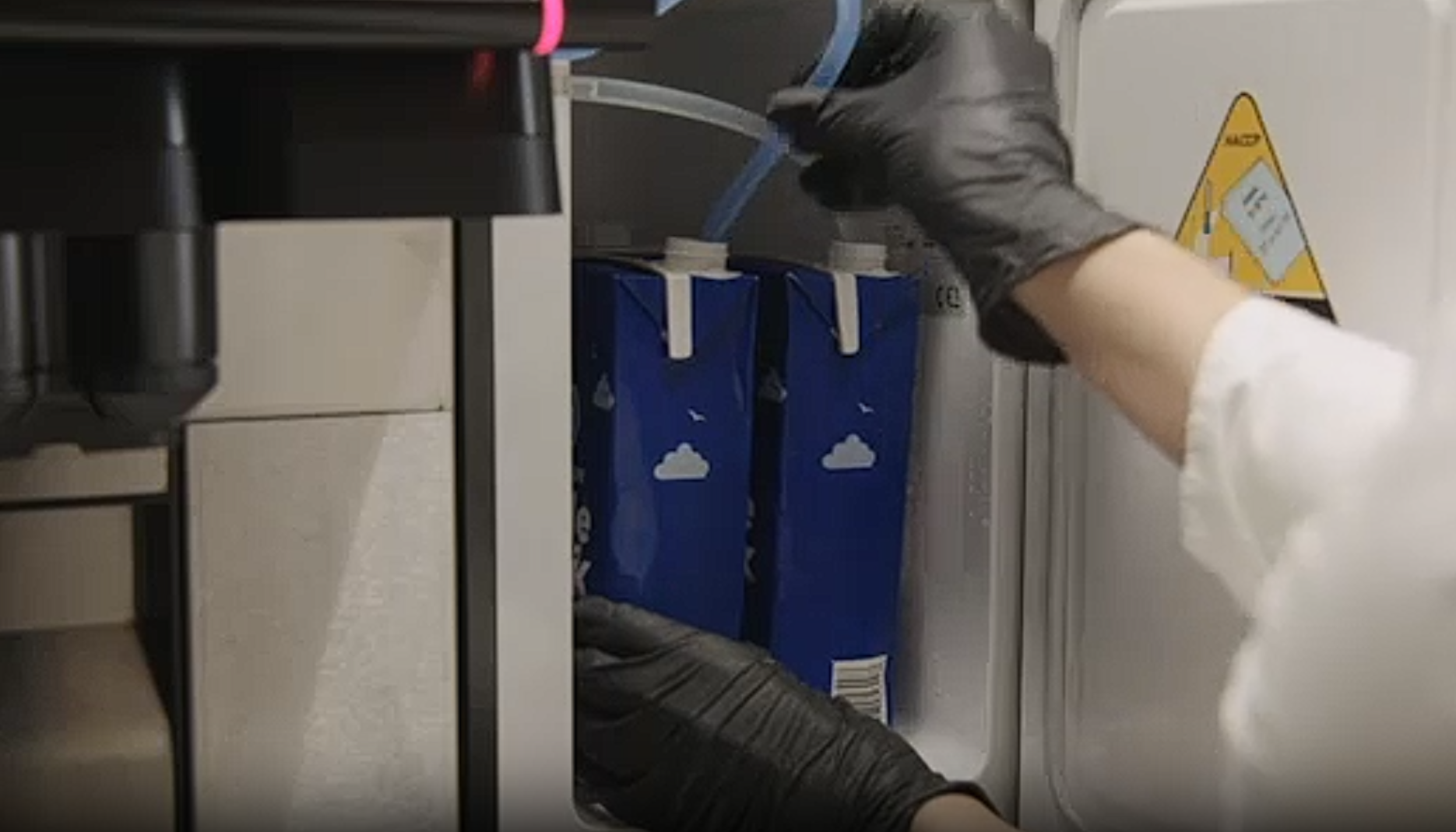

Disconnect the milk tube from the cleaning tray and remove the tray from the refrigerator.Empty the cleaning tray and rinse it.Clean the inside of the refrigerator with a damp cloth.Place the milk container or milk cartons back into the refrigerated compartment a...
Image Instruction
Click to view

Clean the drip tray

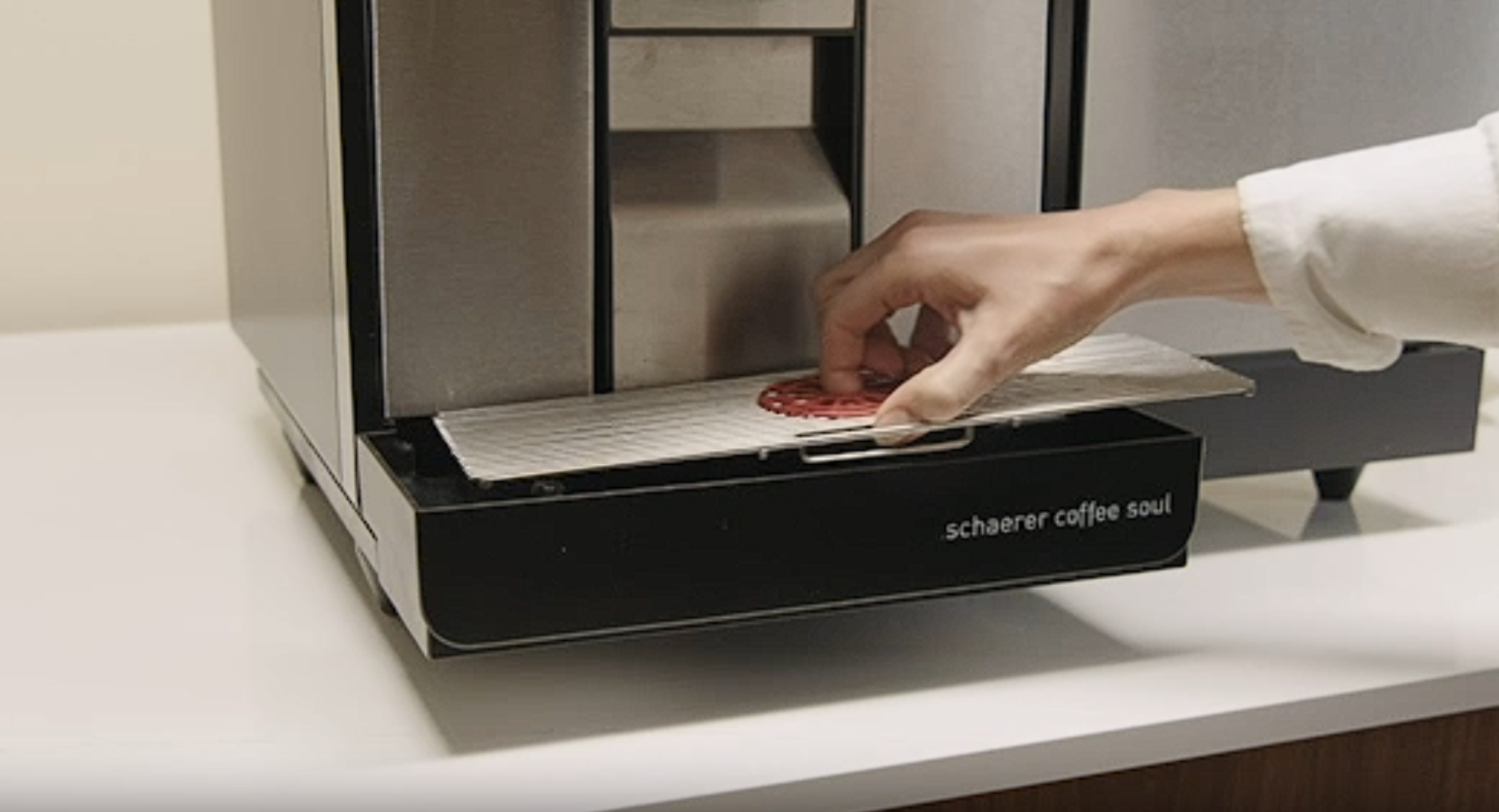

Remove the drip tray, wipe the tray clean, and clean all parts with a brush under running water.
Put the tray back
Image Instruction
Click to view

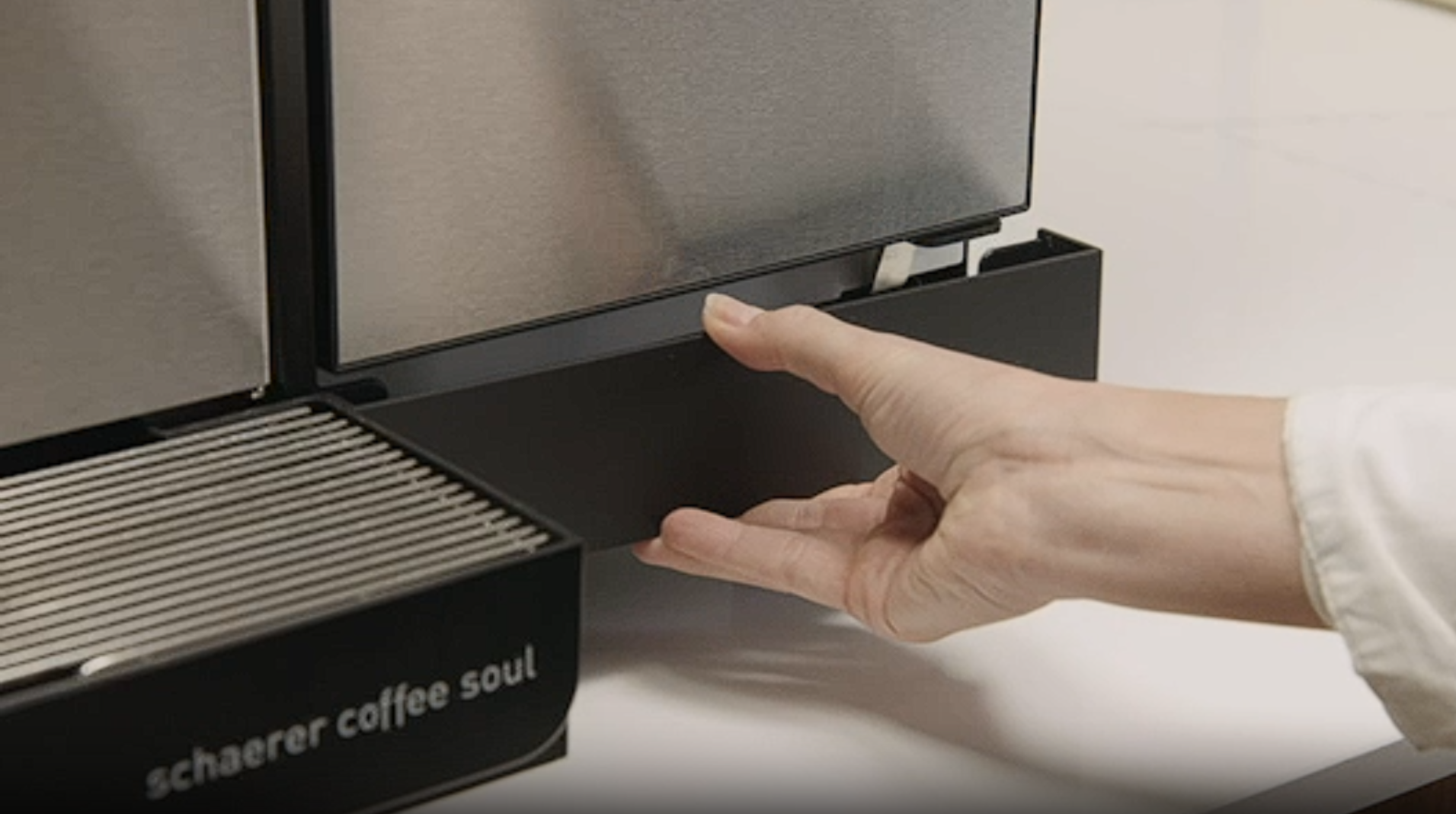

Clean the refrigerator drip tray

Remove the drip tray under the refrigerator and empty it into the sink. Clean it with clean water and a brush.Put the refrigerator drip tray back in place.
Image Instruction
Click to view

Done

The weekly cleaning procedure is complete. Now enjoy a delicious coffee!
